DESCRIPTION
The 0.6/1 kV NAYBY cable (AL/PVC/STA/PVC) is ideal for AC 50Hz power and distribution lines in fixed industrial applications. With its steel wire armour, it offers excellent mechanical protection, making it durable and rigid for use in underground tunnels and other demanding environments. The cable is manufactured in accordance with IEC 60228 and IEC 60502-1 standards, ensuring reliability and safety in electrical installations. This high-quality cable is designed for long-term use in industrial power distribution systems.
APPLICATION
All Aluminium Conductors are used for aerial distribution lines having
relatively short spans,
aerial feeders and bus bars of substations.
STANDARD
- OVERVUEW
- SPECIFICATOPNS
- CONSTRUCTION
- PARAMETER
Specifications
ELECTRICAL PERFORMANCE
N/A
STANDARD
APPLICATION
I DISTRIBUTION LINE
SUBSTATION
SUBSTATION
CORE IDENTIFICATION
N/A
CHEMICAL PERFORMANCE
N/A
MECHANICAL PERFORMANCE
Refer to relative standards
FIRE PERFORMANCE
N/A
THERMINAL PERFORMANCE
N/A
Other Properties
APPROVALS
N/A
INSTALLATION CONDITIONS
Open air
CABLE MARKING
N/A
PACKAGING
BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM
CONSTRUCTION

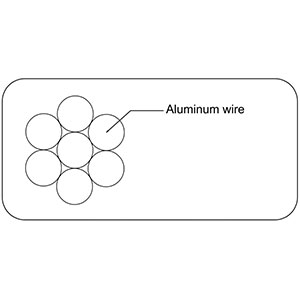

1. Conductor:
Hard drawn aluminum wire
Generally, the AAC Conductor is formed by the following construction:
parameter
IEC 61089
DIN 48201-5
AS 1531
BS 215-1
BS EN 50182
ASTM B 231/B 231M
GB/T 1179
| Code Name |
Nominal Area |
No. & Dia. of Wire | Approx. Overall Dia. |
Approx. Weight |
Nominal Breaking Load |
Max. DC Resistance at 20°C |
| mm2 | No./mm | mm | kg/km | kN | Ω/km | |
| 10 | 10.0 | 7/1.35 | 4.05 | 27.4 | 2.0 | 2.8633 |
| 16 | 16.0 | 7/1.71 | 5.13 | 43.8 | 3.0 | 1.7896 |
| 25 | 25.0 | 7/2.13 | 6.39 | 68.4 | 4.5 | 1.1453 |
| 40 | 40.0 | 7/2.70 | 8.10 | 109.4 | 6.8 | 0.7158 |
| 63 | 63.0 | 7/3.39 | 10.17 | 172.3 | 10.4 | 0.4545 |
| 100 | 100.0 | 19/2.59 | 12.95 | 274.8 | 17.0 | 0.2877 |
| 125 | 125.0 | 19/2.89 | 14.45 | 343.6 | 21.3 | 0.2302 |
| 160 | 160.0 | 19/3.27 | 16.35 | 439.8 | 26.4 | 0.1798 |
| 200 | 200.0 | 19/3.66 | 18.30 | 549.7 | 32.0 | 0.1439 |
| 250 | 250.0 | 19/4.09 | 20.45 | 687.1 | 40.0 | 0.1151 |
| 315 | 315.0 | 37/3.29 | 23.03 | 867.9 | 52.0 | 0.0916 |
| 400 | 400.0 | 37/3.71 | 25.97 | 1102.0 | 64.0 | 0.0721 |
| 450 | 450.0 | 37/3.94 | 27.58 | 1239.8 | 72.0 | 0.0641 |
| 500 | 500.0 | 37/4.15 | 29.05 | 1377.6 | 80.0 | 0.0577 |
| 560 | 560.0 | 37/4.39 | 30.73 | 1542.9 | 89.6 | 0.0515 |
| 630 | 630.0 | 61/3.63 | 32.67 | 1738.3 | 100.8 | 0.0458 |
| 710 | 710.0 | 61/3.85 | 34.65 | 1959.1 | 113.6 | 0.0407 |
| 800 | 800.0 | 61/4.09 | 36.81 | 2207.4 | 128.0 | 0.0361 |
| 900 | 900.0 | 61/4.33 | 38.97 | 2483.3 | 144.0 | 0.0321 |
| 1000 | 1000.0 | 61/4.57 | 41.13 | 2759.2 | 160.0 | 0.0289 |
| 1120 | 1120.0 | 91/3.96 | 43.56 | 3093.5 | 179.2 | 0.0258 |
| 1250 | 1250.0 | 91/4.18 | 45.98 | 3452.6 | 200.0 | 0.0231 |
| 1400 | 1400.0 | 91/4.43 | 48.73 | 3866.9 | 224.0 | 0.0207 |
| 1500 | 1500.0 | 91/4.58 | 50.38 | 4143.1 | 240.0 | 0.0193 |
| Area | No. & Dia. of Wire | Approx. Overall Dia. |
Approx. Weight |
Nominal Breaking Load |
Max. DC Resistance at 20°C |
|
| Nominal | Actual | |||||
| mm2 | mm2 | No./mm | mm | kg/km | kN | Ω/km |
| 16 | 15.9 | 7/1.70 | 5.10 | 43.0 | 2.8 | 1.8022 |
| 25 | 24.3 | 7/2.10 | 6.30 | 66.0 | 4.2 | 1.1810 |
| 35 | 34.4 | 7/2.50 | 7.50 | 94.0 | 5.8 | 0.8333 |
| 50 | 49.5 | 7/3.00 | 9.00 | 135.0 | 7.9 | 0.5787 |
| 50 | 48.4 | 19/1.80 | 9.00 | 133.0 | 8.5 | 0.5951 |
| 70 | 65.8 | 19/2.10 | 10.50 | 181.0 | 11.3 | 0.4372 |
| 95 | 93.3 | 19/2.50 | 12.50 | 256.0 | 15.7 | 0.3085 |
| 120 | 117.0 | 19/2.80 | 14.00 | 322.0 | 18.8 | 0.2459 |
| 150 | 147.1 | 37/2.25 | 15.80 | 406.0 | 25.3 | 0.1960 |
| 185 | 181.6 | 37/2.50 | 17.50 | 500.0 | 30.5 | 0.1588 |
| 240 | 242.5 | 61/2.25 | 20.30 | 670.0 | 39.5 | 0.1191 |
| 300 | 299.4 | 61/2.50 | 22.50 | 827.0 | 47.7 | 0.0965 |
| 400 | 400.1 | 61/2.89 | 26.00 | 1104.0 | 60.9 | 0.0722 |
| 500 | 499.8 | 61/3.23 | 29.10 | 1379.0 | 74.7 | 0.0578 |
| 625 | 626.2 | 91/2.96 | 32.60 | 1732.0 | 95.3 | 0.0462 |
| 800 | 802.1 | 91/3.35 | 36.90 | 2218.0 | 118.4 | 0.0360 |
| 1000 | 999.7 | 91/3.74 | 41.10 | 2767.0 | 145.8 | 0.0289 |
| Code Name |
Nominal Area |
No. & Dia. of Wire | Approx. Overall Dia. |
Approx. Weight |
Nominal Breaking Load |
Max. DC Resistance at 20°C |
| mm2 | No./mm | mm | kg/km | kN | Ω/km | |
| Leo | 34.4 | 7/2.50 | 7.50 | 94.3 | 5.7 | 0.8330 |
| Leonids | 41.6 | 7/2.75 | 8.25 | 113.0 | 6.7 | 0.6890 |
| Libra | 49.5 | 7/3.00 | 9.00 | 135.0 | 8.0 | 0.5790 |
| Mars | 77.3 | 7/3.75 | 11.30 | 211.0 | 11.8 | 0.3700 |
| Mercury | 111.0 | 7/4.50 | 13.50 | 304.0 | 16.9 | 0.2580 |
| Moon | 124.0 | 7/4.75 | 14.30 | 339.0 | 18.9 | 0.2320 |
| Neptune | 158.0 | 19/3.25 | 16.30 | 433.0 | 24.7 | 0.1830 |
| Orion | 183.0 | 19/3.50 | 17.50 | 503.0 | 28.7 | 0.1570 |
| Pluto | 210.0 | 19/3.75 | 18.80 | 576.0 | 31.9 | 0.1370 |
| Saturn | 262.0 | 37/3.00 | 21.00 | 721.0 | 42.2 | 0.1100 |
| Sirius | 307.0 | 37/3.25 | 22.80 | 845.0 | 48.2 | 0.0940 |
| Taurus | 337.0 | 19/4.75 | 23.80 | 924.0 | 51.3 | 0.0857 |
| Triton | 409.0 | 37/3.75 | 26.30 | 1120.0 | 62.2 | 0.0706 |
| Uranus | 506.0 | 61/3.25 | 29.30 | 1400.0 | 75.2 | 0.0572 |
| Ursula | 587.0 | 61/3.50 | 31.50 | 1620.0 | 87.3 | 0.0493 |
| Venus | 673.0 | 61/3.75 | 33.80 | 1860.0 | 97.2 | 0.0429 |
| Code Name |
Nominal Area |
No.& Dia. of Wire | Approx. Overall Dia. |
Total Area |
Approx. Weight |
Nominal Breaking Load |
Max. DC Resistance at 20°C |
| mm2 | No./mm | mm | mm2 | kg/km | kN | Ω/km | |
| Midge | 22.0 | 7/2.06 | 6.18 | 23.3 | 64.0 | 4.0 | 1.2270 |
| Ant | 50.0 | 7/3.10 | 9.30 | 52.8 | 145.0 | 8.3 | 0.5419 |
| Fly | 60.0 | 7/3.40 | 10.20 | 63.6 | 174.0 | 9.9 | 0.4505 |
| Wasp | 100.0 | 7/4.39 | 13.17 | 106.0 | 290.0 | 16.0 | 0.2702 |
| Hornet | 150.0 | 19/3.25 | 16.25 | 157.6 | 434.0 | 25.7 | 0.1825 |
| Chafer | 200.0 | 19/3.78 | 18.90 | 213.2 | 587.0 | 32.4 | 0.1349 |
| Cockroach | 250.0 | 19/4.22 | 21.10 | 265.7 | 731.0 | 40.4 | 0.1083 |
| Butterfly | 300.0 | 19/4.65 | 23.25 | 322.7 | 888.0 | 48.8 | 0.0892 |
| Centipede | 400.0 | 37/3.78 | 26.46 | 415.2 | 1145.0 | 63.1 | 0.0694 |
| Code Name |
No.& Dia. of Wire | Approx. Overall Dia. |
Total Area |
Approx. Weight |
Nominal Breaking Load |
Max. DC Resistance at 20°C |
| No./mm | mm | mm2 | kg/km | kN | Ω/km | |
| Gnat | 7/2.21 | 6.63 | 26.9 | 73.0 | 4.8 | 1.0643 |
| Mosquito | 7/2.59 | 7.77 | 36.9 | 101.0 | 6.3 | 0.7749 |
| Ladybird | 7/2.79 | 8.37 | 42.8 | 117.0 | 7.3 | 0.6678 |
| Bluebottle | 7/3.66 | 10.98 | 73.6 | 201.0 | 11.8 | 0.3880 |
| Earwig | 7/3.78 | 11.34 | 78.6 | 215.0 | 12.6 | 0.3638 |
| Grasshopper | 7/3.91 | 11.73 | 84.1 | 230.0 | 13.5 | 0.3400 |
| Clegg | 7/4.17 | 12.51 | 95.6 | 261.0 | 15.3 | 0.2989 |
| Beetle | 19/2.67 | 13.35 | 106.4 | 292.0 | 18.1 | 0.2701 |
| Bee | 7/4.90 | 14.70 | 132 | 361.0 | 21.1 | 0.2165 |
| Caterpillar | 19/3.53 | 17.65 | 185.9 | 511.0 | 29.8 | 0.1546 |
| Spider | 19/3.99 | 19.95 | 237.6 | 653.0 | 38.0 | 0.1210 |
| Moth | 19/5.00 | 25.00 | 373.1 | 1025.0 | 59.7 | 0.0770 |
| Drone | 37/3.58 | 25.06 | 372.4 | 1027.0 | 59.6 | 0.0774 |
| Maybug | 37/4.09 | 28.63 | 486.1 | 1341.0 | 77.8 | 0.0593 |
| Scorpion | 37/4.27 | 29.89 | 529.8 | 1461.0 | 84.8 | 0.0544 |
| Cicada | 37/4.65 | 32.55 | 628.3 | 1733.0 | 100.5 | 0.0459 |
| Code Name |
Nominal Area | No./ Dia. of Wire | Approx. Overall Dia. |
Approx. Weight |
Nominal Breaking Load |
Max. DC Resistance at 20°C |
|
| AWG or MCM | mm2 | No./mm | mm | kg/km | kN | Ω/km | |
| Peachbell | 6 | 13.3 | 7/1.56 | 4.68 | 36.6 | 2.5 | 2.1477 |
| Rose | 4 | 21.1 | 7/1.96 | 5.88 | 58.2 | 3.9 | 1.3606 |
| Iris | 2 | 33.6 | 7/2.47 | 7.41 | 92.6 | 6.0 | 0.8567 |
| Pansy | 1 | 42.4 | 7/2.78 | 8.34 | 116.6 | 7.3 | 0.6763 |
| Poppy | 1/0.0 | 53.5 | 7/3.12 | 9.36 | 147.2 | 8.8 | 0.5369 |
| Aster | 2/0.0 | 67.4 | 7/3.50 | 10.50 | 185.7 | 11.1 | 0.4267 |
| Phlox | 3/0.0 | 85.0 | 7/3.93 | 11.79 | 233.9 | 13.5 | 0.3384 |
| Oxlip | 4/0.0 | 107.2 | 7/4.42 | 13.26 | 295.2 | 17.0 | 0.2675 |
| Valerian | 250.0 | 126.7 | 19/2.91 | 14.55 | 348.6 | 20.7 | 0.2274 |
| Sneezewort | 250.0 | 126.7 | 7/4.80 | 14.40 | 348.8 | 20.1 | 0.2269 |
| Laurel | 266.8 | 135.2 | 19/3.01 | 15.05 | 372.2 | 22.1 | 0.2125 |
| Daisy | 266.8 | 135.2 | 7/4.96 | 14.88 | 372.3 | 21.4 | 0.2125 |
| Peony | 300.0 | 152.0 | 19/3.19 | 15.95 | 418.3 | 24.3 | 0.1892 |
| Tulip | 336.4 | 170.5 | 19/3.38 | 16.90 | 469.5 | 27.3 | 0.1686 |
| Daffodil | 350.0 | 177.3 | 19/3.45 | 17.25 | 487.9 | 28.4 | 0.1618 |
| Canna | 397.5 | 201.4 | 19/3.67 | 18.35 | 554.9 | 31.6 | 0.1430 |
| Goldentuft | 450.0 | 228.0 | 19/3.91 | 19.55 | 627.6 | 35.0 | 0.1260 |
| Syringa | 477.0 | 241.7 | 37/2.88 | 20.16 | 664.8 | 38.6 | 0.1192 |
| Cosmos | 477.0 | 241.7 | 19/4.02 | 20.10 | 664.8 | 37.0 | 0.1192 |
| Hyacinth | 500.0 | 253.3 | 37/2.95 | 20.65 | 696.8 | 40.5 | 0.1136 |
| Zinnia | 500.0 | 253.3 | 19/4.12 | 20.60 | 697.1 | 38.9 | 0.1134 |
| Dahlia | 556.5 | 282.0 | 19/4.35 | 21.75 | 775.8 | 43.3 | 0.1018 |
| Mistletoe | 556.5 | 282.0 | 37/3.12 | 21.84 | 775.7 | 44.3 | 0.1016 |
| Meadowsweet | 600.0 | 304.0 | 37/3.23 | 22.61 | 836.3 | 47.5 | 0.0948 |
| Orchid | 636.0 | 322.3 | 37/3.33 | 23.31 | 886.9 | 50.4 | 0.0892 |
| Heuchera | 650.0 | 329.4 | 37/3.37 | 23.59 | 907.4 | 51.7 | 0.0871 |
| Flag | 700.0 | 354.7 | 61/2.72 | 24.48 | 975.8 | 57.1 | 0.0811 |
| Varbena | 700.0 | 354.7 | 37/3.49 | 24.43 | 975.7 | 55.4 | 0.0812 |
| Nasturtium | 715.5 | 362.6 | 61/2.75 | 24.75 | 998.5 | 58.4 | 0.0793 |
| Violet | 715.5 | 362.6 | 37/3.53 | 24.71 | 998.5 | 56.7 | 0.0794 |
| Cattail | 750.0 | 380.0 | 61/2.82 | 25.38 | 1046.0 | 60.3 | 0.0754 |
| Petunia | 750.0 | 380.0 | 37/3.62 | 25.34 | 1046.0 | 58.6 | 0.0755 |
| Lilac | 795.0 | 402.8 | 61/2.90 | 26.10 | 1110.0 | 63.8 | 0.0713 |
| Arbutus | 795.0 | 402.8 | 37/3.72 | 26.04 | 1109.0 | 61.8 | 0.0715 |
| Snapdragon | 900.0 | 456.0 | 61/3.09 | 27.81 | 1256.0 | 70.8 | 0.0628 |
| Cockscomb | 900.0 | 456.0 | 37/3.96 | 27.72 | 1256.0 | 68.4 | 0.0631 |
| Goldenrod | 954.0 | 483.4 | 61/3.18 | 28.62 | 1331.0 | 75.0 | 0.0593 |
| Magnolia | 954.0 | 483.4 | 37/4.08 | 28.56 | 1331.0 | 72.6 | 0.0594 |
| Camellia | 1000.0 | 506.7 | 61/3.25 | 29.25 | 1394.0 | 78.3 | 0.0568 |
| Hawkweed | 1000.0 | 506.7 | 37/4.18 | 29.26 | 1395.0 | 76.2 | 0.0566 |
| Larkspur | 1033.5 | 523.7 | 61/3.31 | 29.79 | 1442.0 | 81.3 | 0.0547 |
| Bluebell | 1033.5 | 523.7 | 37/4.25 | 29.75 | 1441.0 | 78.8 | 0.0547 |
| Marigold | 1113.0 | 564.0 | 61/3.43 | 30.87 | 1553.0 | 87.3 | 0.0510 |
| Hawthorn | 1192.5 | 604.2 | 61/3.55 | 31.95 | 1662.0 | 93.5 | 0.0476 |
| Narsissus | 1272.0 | 644.5 | 61/3.67 | 33.03 | 1774.0 | 98.1 | 0.0445 |
| Columbine | 1351.0 | 694.8 | 61/3.78 | 34.02 | 1884.0 | 104.0 | 0.0420 |
| Carnation | 1431.0 | 725.1 | 61/3.89 | 35.01 | 1997.0 | 108.0 | 0.0396 |
| Gladiolus | 1510.5 | 765.4 | 61/4.00 | 36.00 | 2108.0 | 114.0 | 0.0375 |
| Coreopsis | 1590.0 | 805.7 | 61/4.10 | 36.90 | 2216.0 | 120.0 | 0.0357 |
| Jassamine | 1750.0 | 886.7 | 61/4.30 | 38.70 | 2442.0 | 132.0 | 0.0324 |
| Cowslip | 2000.0 | 1013.0 | 91/3.77 | 41.47 | 2787.0 | 153.0 | 0.0286 |
| Sagebrush | 2250.0 | 1140.0 | 91/3.99 | 43.89 | 3166.0 | 167.0 | 0.0255 |
| Lupine | 2500.0 | 1267.0 | 91/4.21 | 46.31 | 3519.0 | 186.0 | 0.0229 |
| Bitterrot | 2750.0 | 1393.0 | 91/4.42 | 48.62 | 3872.0 | 205.0 | 0.0208 |
| Trillium | 3000.0 | 1520.0 | 127/3.90 | 50.70 | 4226.0 | 223.0 | 0.0193 |
| Bluebonnet | 3500.0 | 1773.0 | 127/4.22 | 54.86 | 4977.0 | 261.0 | 0.0165 |
| Nominal Area |
Total Area |
No./Dia. of Wire | Approx. Overall Dia. |
Approx. Weight |
Nominal Breaking Load |
Max. DC Resistance at 20°C |
| mm2 | mm2 | No./mm | mm | kg/km | kN | Ω/km |
| 35 | 34.4 | 7/2.50 | 7.50 | 94.0 | 6.0 | 0.8333 |
| 50 | 49.5 | 7/3.00 | 9.00 | 135.3 | 8.4 | 0.5787 |
| 70 | 71.3 | 7/3.60 | 10.80 | 194.9 | 11.4 | 0.4019 |
| 95 | 95.1 | 7/4.16 | 12.50 | 260.2 | 15.2 | 0.3010 |
| 120 | 121.2 | 19/2.85 | 14.30 | 333.2 | 20.6 | 0.2374 |
| 150 | 148.1 | 19/3.15 | 15.80 | 407.0 | 24.4 | 0.1943 |
| 185 | 182.8 | 19/3.50 | 17.50 | 502.4 | 30.2 | 0.1574 |
| 210 | 209.9 | 193.75 | 18.80 | 576.8 | 33.6 | 0.1371 |
| 240 | 238.8 | 19/4.00 | 20.00 | 656.3 | 38.2 | 0.1205 |
| 300 | 297.6 | 19/3.20 | 22.40 | 819.8 | 49.1 | 0.0969 |
| 500 | 502.9 | 19/4.16 | 29.10 | 1385.5 | 80.5 | 0.0573 |
